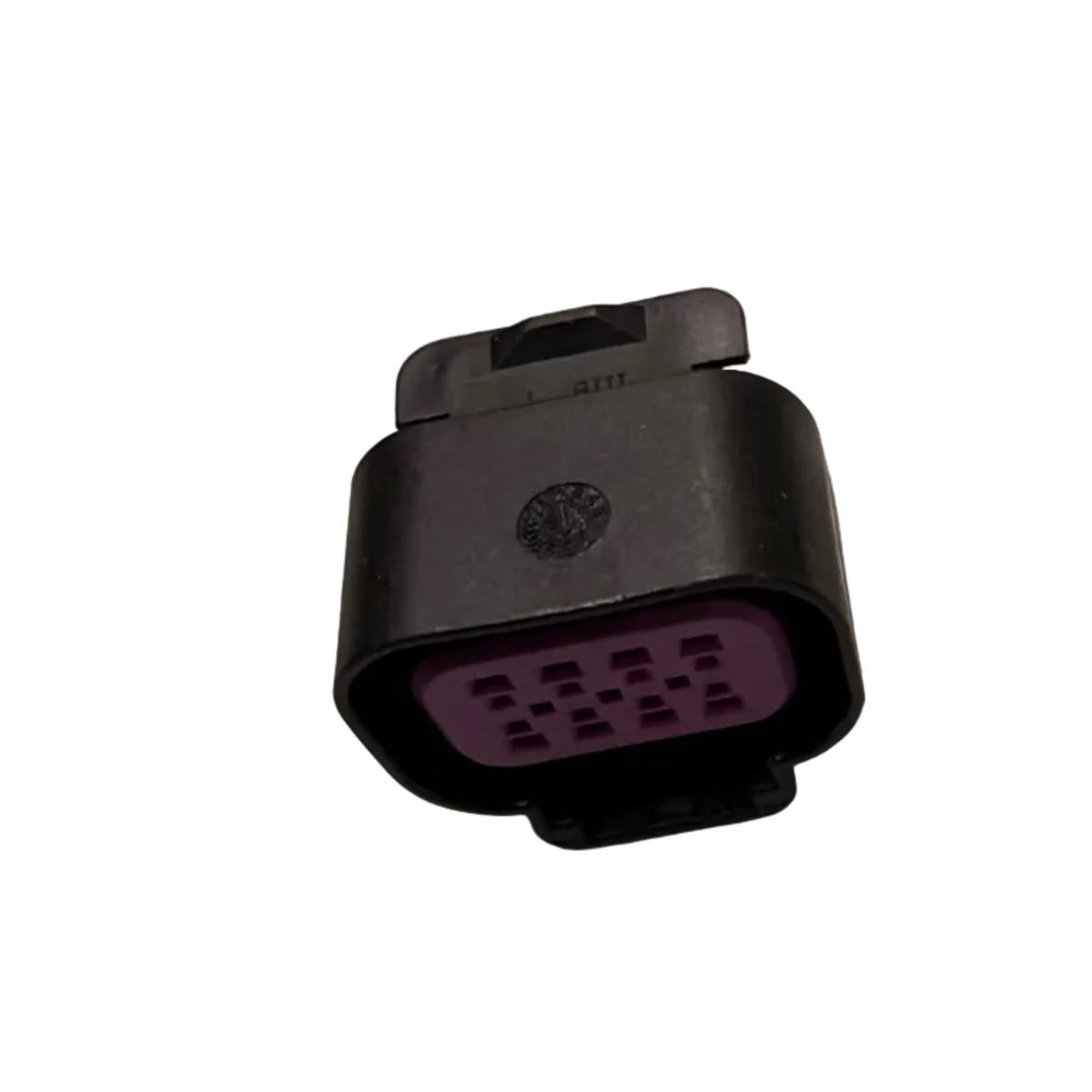

GM Drive-by-Wire Throttle Body Connector — Aptiv/Delphi 15326836 GT 150 8-Way

Repair or build a GM electronic throttle-control harness with this Aptiv/Delphi GT 150 black 8-way sealed female connector. It is commonly used as a drive-by-wire throttle-body connector on GM and LS-based engine wiring applications.

Choose your configuration

• Connector Kit: Black 8-way female housing, eight socket terminals, eight wire seals, and required locking components.
• 12-Inch Pigtail: Fully assembled connector with eight 12-inch automotive-grade wire leads.

Specifications

• Aptiv/Delphi part number: 15326836
• Connector family: GT 150 sealed
• Positions: 8, two rows
• Gender: Female/receptacle
• Color: Black with purple secondary lock
• Terminal/contact size: 1.5 mm
• Wire range: approximately 22–16 AWG, depending on terminal and seal selection
• Maximum rating: 15 amps per circuit
• Operating temperature: approximately -40°C to 125°C

Fitment note: Commonly used for GM drive-by-wire throttle bodies, but applications and keying vary. Match the part number and connector face to your original before ordering. Wire colors may vary.
