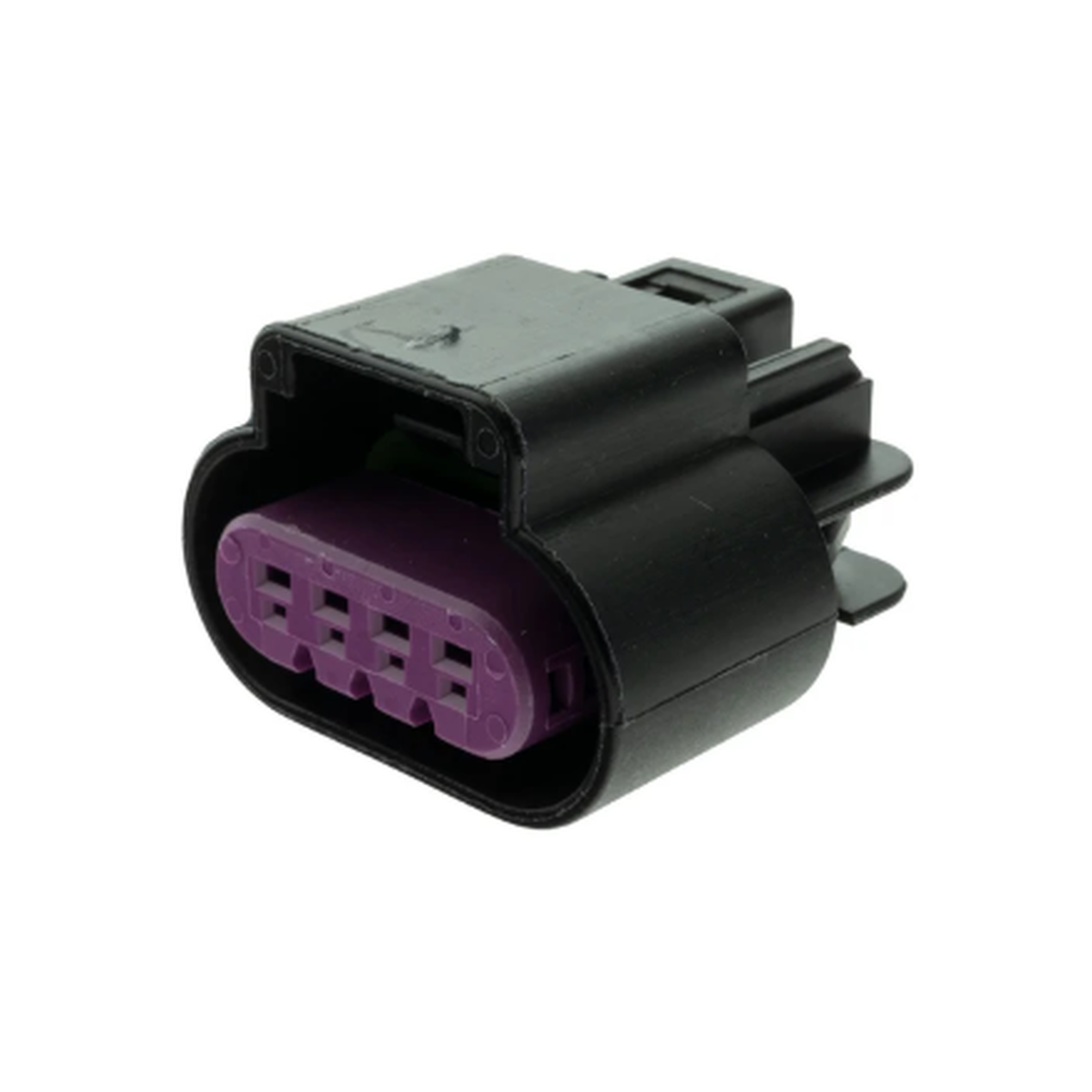

Aptiv/Delphi 15326815 GT 150 Black 4-Way Sealed Female Connector

Build or repair a sealed four-circuit automotive harness with this Aptiv/Delphi GT 150 black 4-way female connector. Its compact, weather-resistant construction is suitable for sensors, actuators, modules, and general under-hood wiring.

Choose your configuration

• Connector Kit: Black 4-way female housing, four socket terminals, four wire seals, and required locking components.
• 12-Inch Pigtail: Fully assembled connector with four 12-inch automotive-grade wire leads.

Specifications

• Original Aptiv/Delphi part number: 15326815
• Superseding part number: 15487756
• Connector family: GT 150 sealed, 4.5 mm pitch
• Positions: 4, single row
• Gender: Female/receptacle
• Color: Black with purple secondary lock
• Terminal/contact size: 1.5 mm
• Wire range: approximately 22–16 AWG, depending on terminal and seal selection
• Maximum rating: 15 amps per circuit
• Mating connector: Aptiv/Delphi 15326820

Fitment note: Match the part number, connector face, and keying to your original before ordering. Wire colors may vary.
