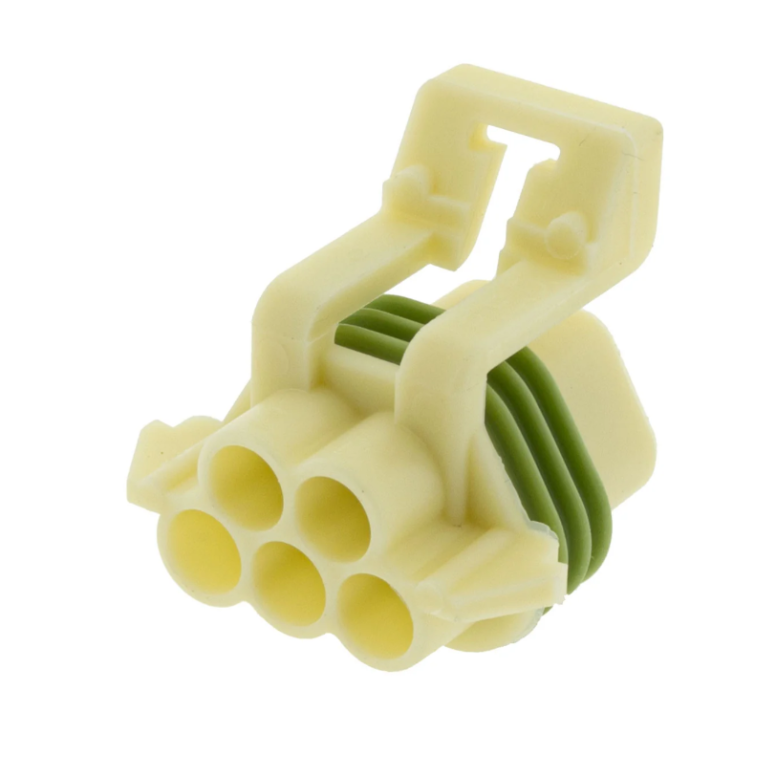

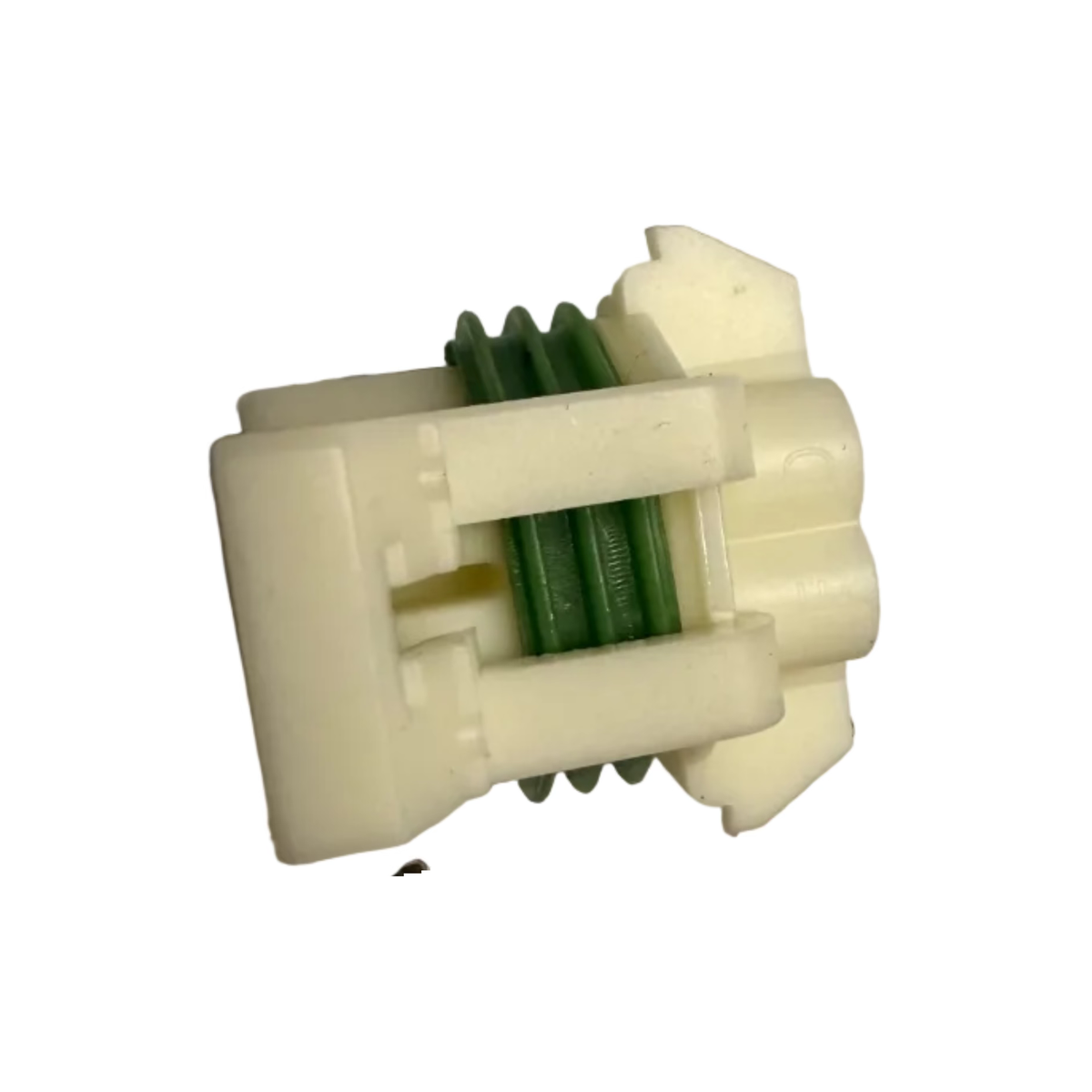

Aptiv/Delphi 12146045 Metri-Pack 150 Cream 5-Way Female Connector

Build or repair a sealed five-circuit automotive harness with this Aptiv/Delphi Metri-Pack 150 female connector. Its compact, weather-resistant construction is suited to inline connections, modules, controls, sensors, and general under-hood wiring.

Choose your configuration

• Connector Kit: Cream 5-way female housing, five socket terminals, five wire seals, and TPA lock.
• 12-Inch Pigtail: Fully assembled connector with five 12-inch automotive-grade wire leads.

Specifications

• Aptiv/Delphi part number: 12146045
• Connector family: Metri-Pack 150 sealed
• Positions: 5
• Gender: Female
• Color: Cream/natural with green perimeter seal
• Terminal blade size: 1.5 mm
• Wire range: approximately 22–18 AWG, depending on terminal and seal selection
• Maximum rating: 14 amps per circuit
• Mating connector: Aptiv/Delphi 12103974
• Operating temperature: approximately -40°C to 125°C

Fitment note: Match the part number, connector face, keying, and terminal gender to your original connector before ordering. Wire colors may vary.
