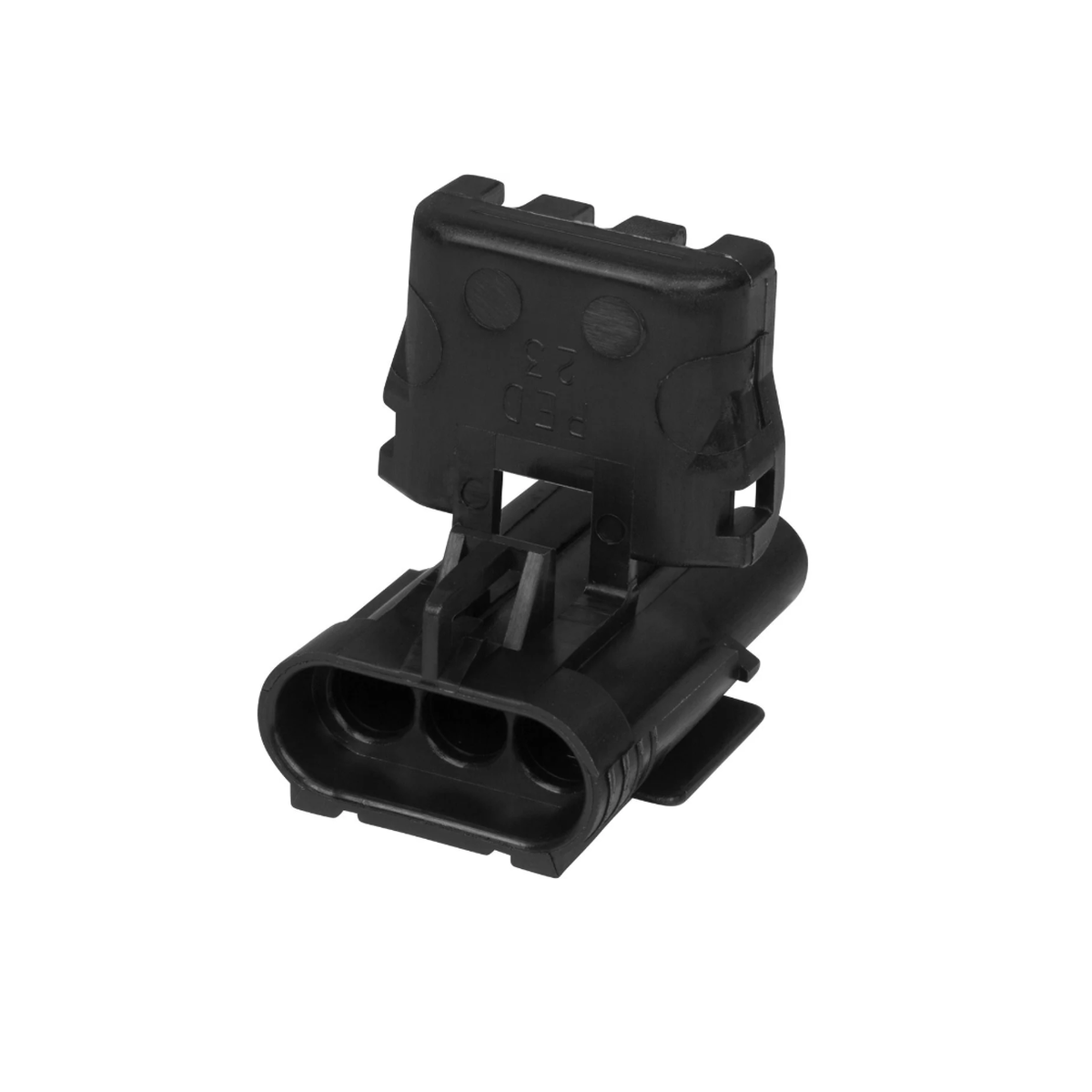

Aptiv/Delphi 12020827 Weather Pack Black 3-Way Male Connector

Aptiv/Delphi Weather Pack black 3-way environmentally sealed male connector for automotive wiring repairs, custom harnesses, sensors, switches, and other under-hood electrical circuits.

Choose your configuration:

• Connector Kit: Black 3-way male housing with three matching terminals, three wire seals, and required CPA lock.
• 12-Inch Pigtail: Complete connector assembled with three 12-inch automotive-grade wire leads and CPA lock, ready to splice into your harness.

Specifications:

• Aptiv/Delphi part number: 12020827
• Connector family: Weather Pack Shroud
• Positions: 3
• Style: Male, sealed
• Color: Black
• Maximum current: 20 amps
• Wire-gauge range varies by selected terminals and seals
• Mating connector: Aptiv/Delphi 12020829
• Required CPA lock: Aptiv/Delphi 12020833 — included with both options

Match the part number, cavity arrangement, keying, latch, and connector shape before ordering. Applications can vary by vehicle and wiring harness.
